Hall-effect sensors from
Rochester Sensors
Rochester Sensors
The add-on for monitoring of gas tank levels.
Mechanical floating gauges fitted to liquefied gas tanks (LPG, propane, butane) can be retained when implementing our Industrial IoT solution. The existing dial simply needs to be replaced by a Hall-effect sensor that will enable information to be sent to the NETRIS®2 or NETRIS®3 telemetry units.
We supply our customers with Hall-effect sensors compatible with our systems, produced by Rochester Sensors.
Hall-effect sensors from Rochester Sensors ⸻
How it works
01
Installation instead of the existing analogue dial on the floating gauge.
02
Electrical connection to a NETRIS®2 or NETRIS®3 telemetry unit.
03
Translation of the magnetic field of the dial needle magnet into an electrical signal proportional to the volume of liquid inside the tank.
04
Transmission of the electrical signal to the telemetry unit to measure tank levels.
Fields of application
COMPATIBLE EQUIPMENT
Oil Link™ cloud portal
Interface between telemetry units and your logistics system
NETRIS®2
Telemetry unit with GSM transmission
NETRIS®3
Telemetry unit with LPWAN transmission
Technical specifications

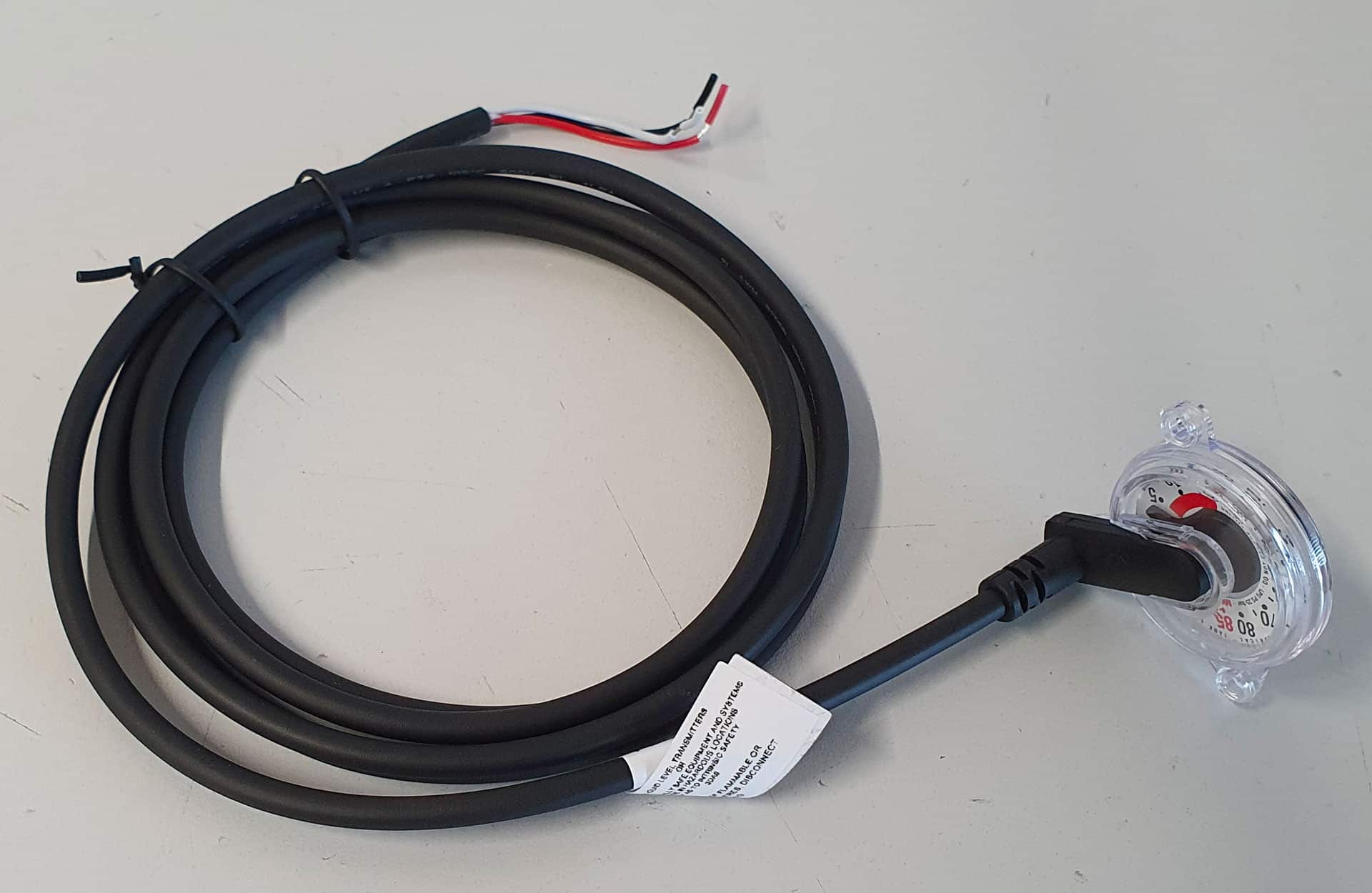

- Model reference: Hall-effect Sensor 6320S**07**

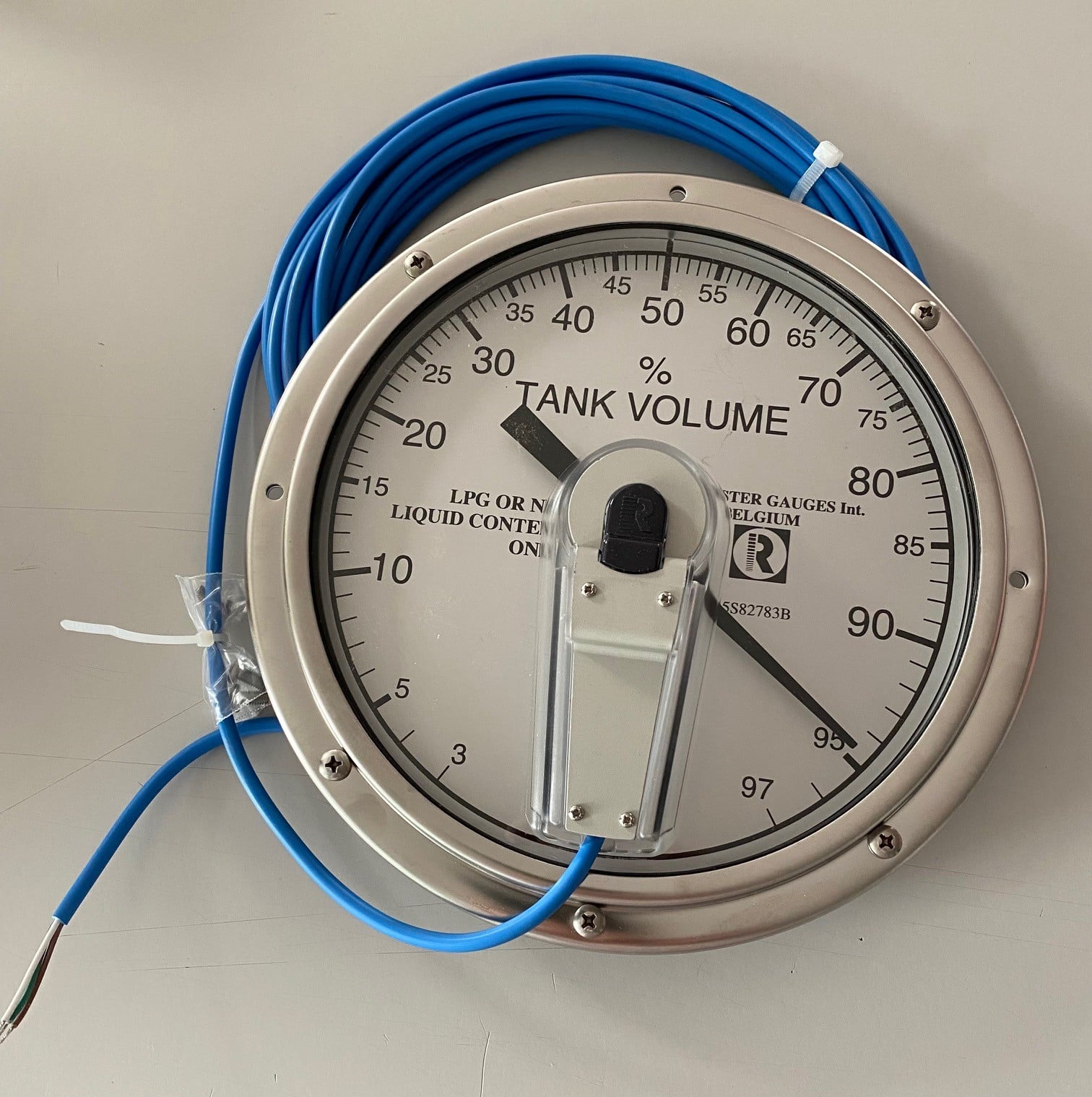

- Available with different dial sizes: Junior, Senior, Senior 4", Magnetel 4" or 8"
- IECEx/ATEX/UL certified, meets IP68 waterproofing standard
